Vans · Light trucks · Electric vehicles

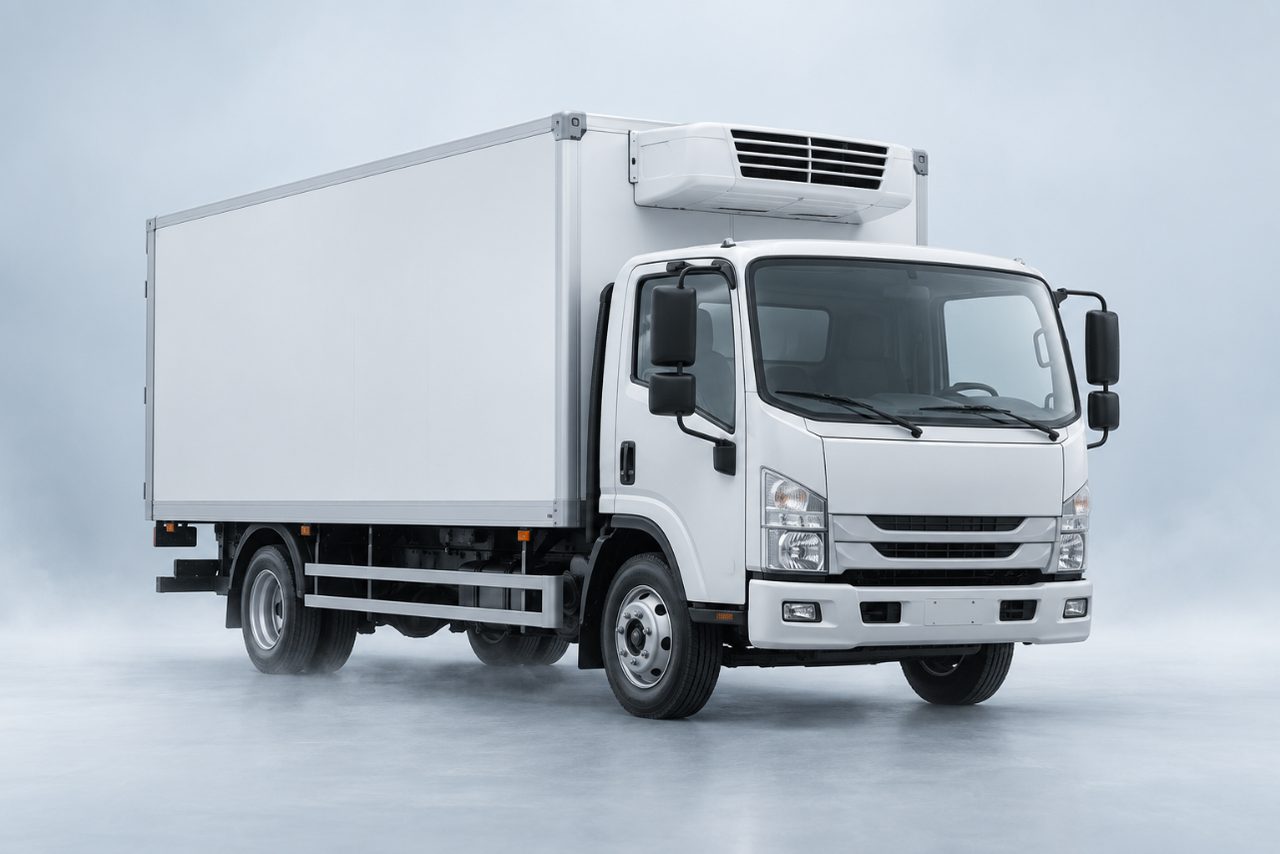

Truck Refrigeration Units

Name: Truck Refrigeration Units
Brand: Be There

Roof-mounted refrigeration units for vans and trucks carrying frozen food, fresh produce, dairy and medicine. Engine-driven, independent diesel and all-electric versions.

Operating range−20 to +15 °C

−40 °C0+60 °C

Get a price Specifications

−20 to +15 °C

−20°Clowest box temperature

4–45m³box volume range

9,000Wmax cooling at 0 °C

12/24V DCelectric vehicle option

Specifications

Typical models.

Values are typical. Send your voltage, size or capacity and we configure the model and confirm data on the quotation.

Series	Drive	Box volume	Cooling capacity at 0 °C	Box temperature	Refrigerant
Van series	Direct drive (engine)	4–10 m³	≈ 2,000–2,800 W	−18 °C to +15 °C	R404A / R452A
Mid-truck series	Direct drive + standby	10–25 m³	≈ 3,500–5,200 W	−20 °C to +15 °C	R404A / R452A
Large-truck series	Independent diesel	25–45 m³	≈ 6,500–9,000 W	−20 °C to +15 °C	R404A / R452A
EV series	12 / 24 V DC or battery	4–18 m³	≈ 1,500–4,000 W	−18 °C to +10 °C	R404A / R134a

≈ approximate, measured at standard test conditions.

Features

Built for daily commercial use.

Slim roof-top condenser

Low profile keeps vehicle height down and reduces drag.

Electric standby

Optional 220 V / 380 V standby keeps the box cold while the engine is off.

Digital controller

Set-point, defrost and alarms in the cab; temperature recorder optional.

Install kits included

Brackets, hoses, wiring and compressor bracket matched to your vehicle model.

Applications

Where it works.

Frozen food distribution
Fresh produce & dairy
Ice cream delivery
Pharmaceutical transport
Last-mile e-grocery vans
Seafood logistics

FAQ

Questions buyers ask.

Something else? Ask us directly

Which unit fits my vehicle?

Send the box inner size, insulation thickness, target temperature and number of door openings per day. We size the unit from those.

Do you supply compressor brackets for my engine?

Tell us the vehicle make, model and engine code and we match the bracket.

Which refrigerant do the units use?

R404A is standard. R452A is available for markets that require a lower-GWP refrigerant.
